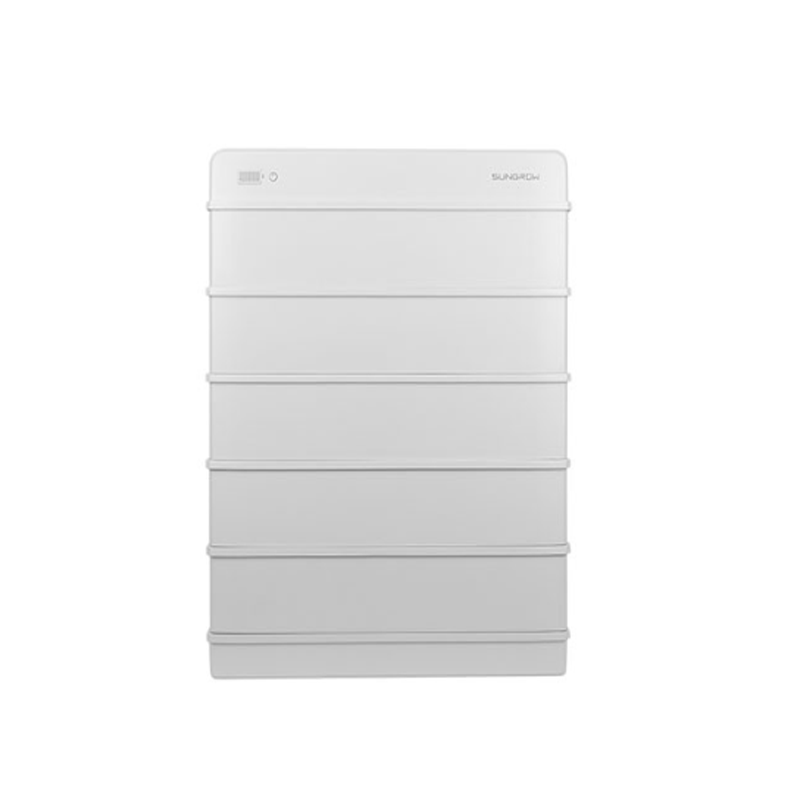

Sungrow SBR160 Storage System 16.0 kWh + SH8.0RT

For households with higher electricity consumption or the desire for maximum self-sufficiency, the Sungrow SBR160 set with 16 kWh usable capacity offers significantly more storage reserve for everyday life.

Technical Highlights

• 16 kWh usable capacity (5 modules of 3.2 kWh each), LiFePO4 technology
• Rated voltage 320V, operating range 270-365V
• Max. charge/discharge current 30A, depth of discharge (DOD) up to 100%
• Protection class IP55, charging 0-50°C, discharging -20-50°C
• Certified according to CE, IEC 62619, VDE 2510-50, UN38.3, UKCA
• Dimensions 625x805x330mm, 180kg

Suitable for

For single-family homes with heat pumps, electric cars or high electricity consumption.

Price & Trust

Reviewed by our team, with recognized safety certificates. For questions on dimensioning: personal advice from Solar-Guard.

Frequently Asked Questions

Can I expand the capacity later?
Yes, the Sungrow SBR series is modular. If required, the capacity can be expanded with additional battery modules.

Documents & Downloads

• Technical Data Sheet (PDF)
• User Manual (PDF)
