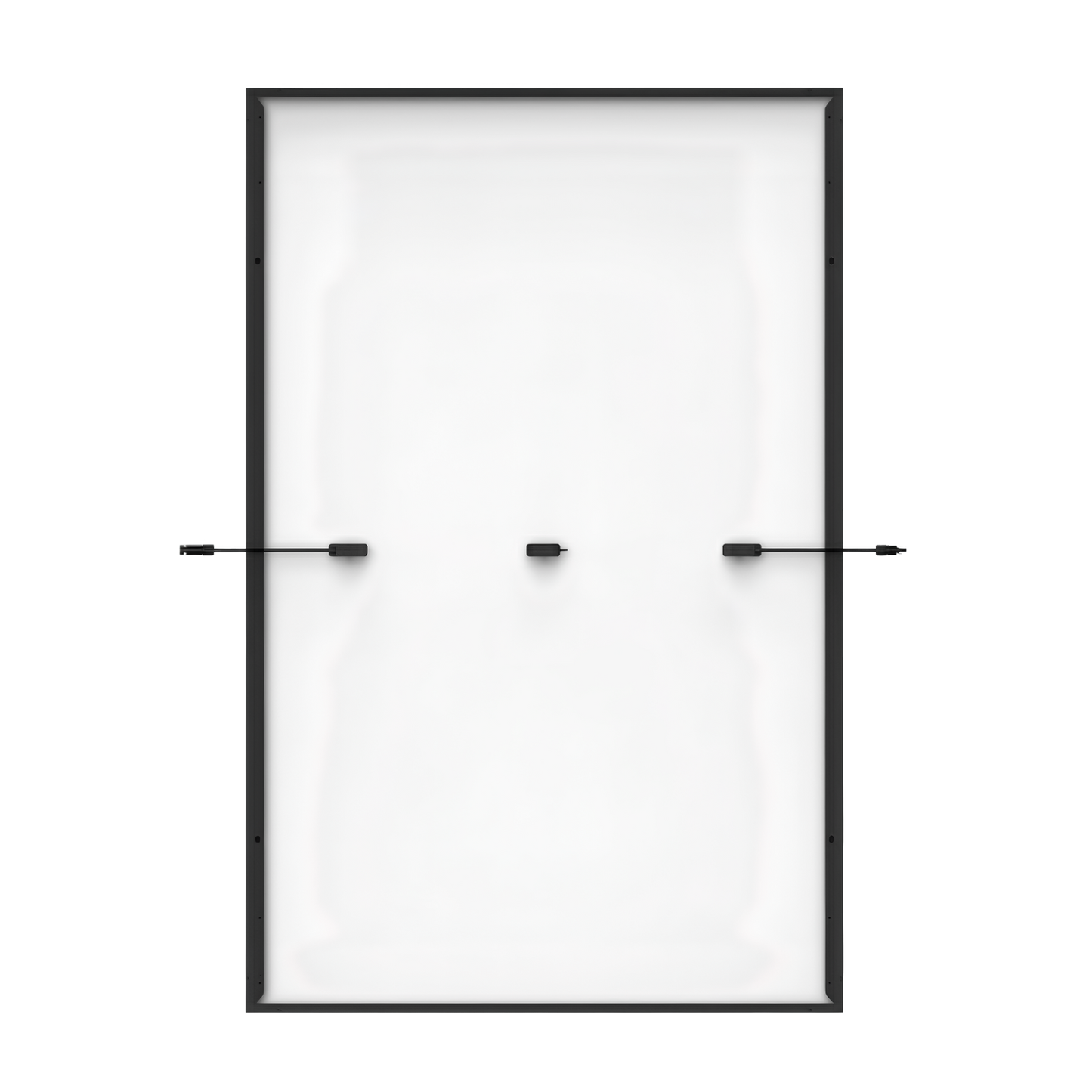

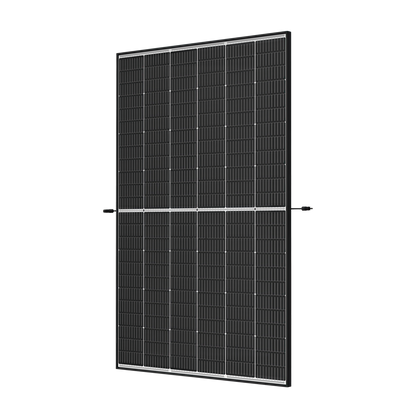

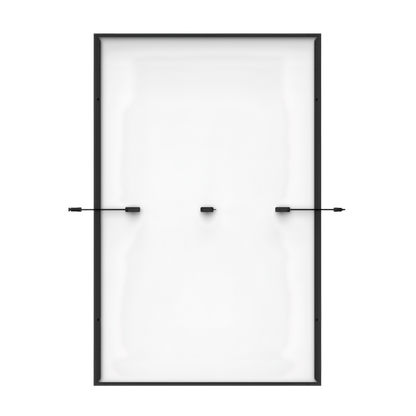

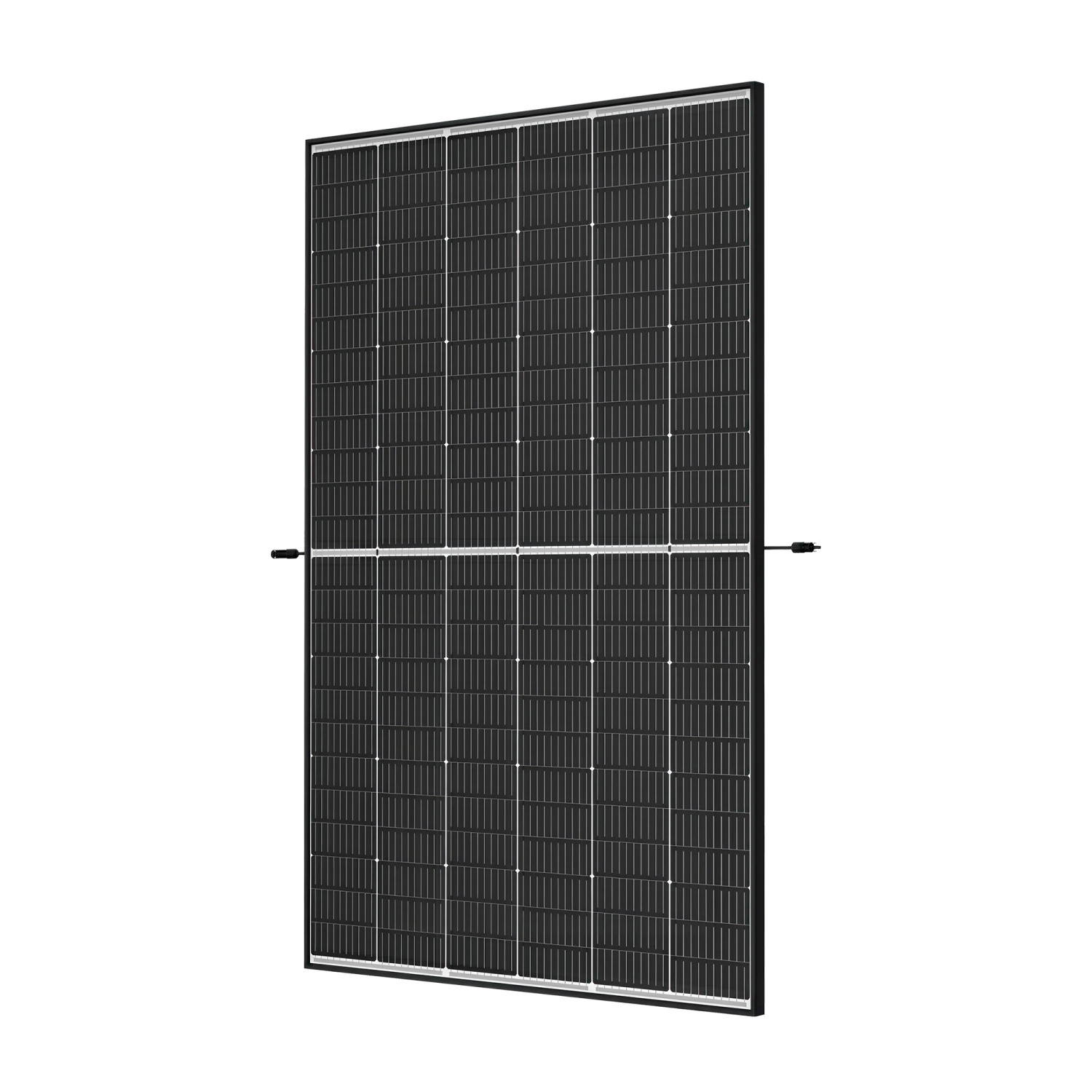

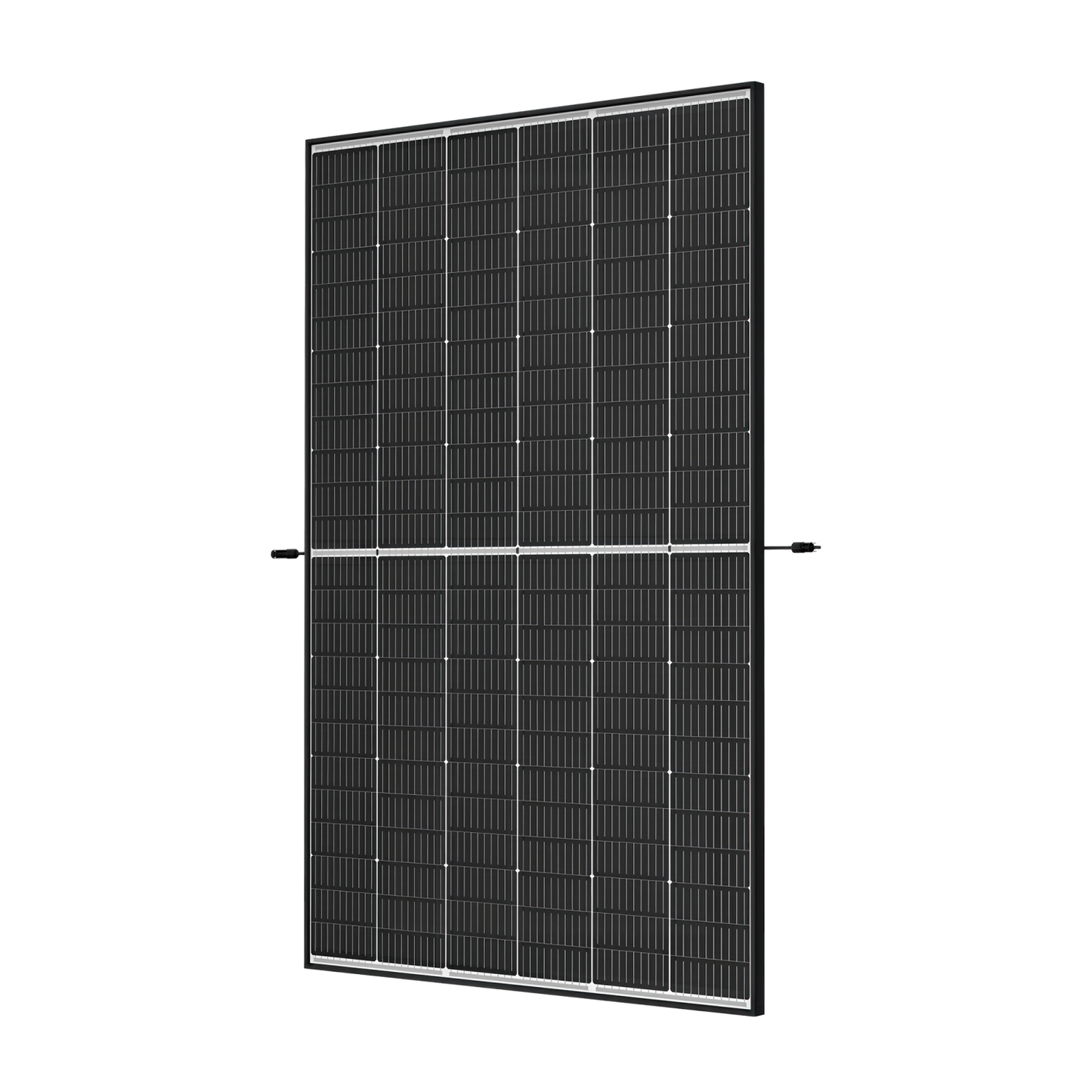

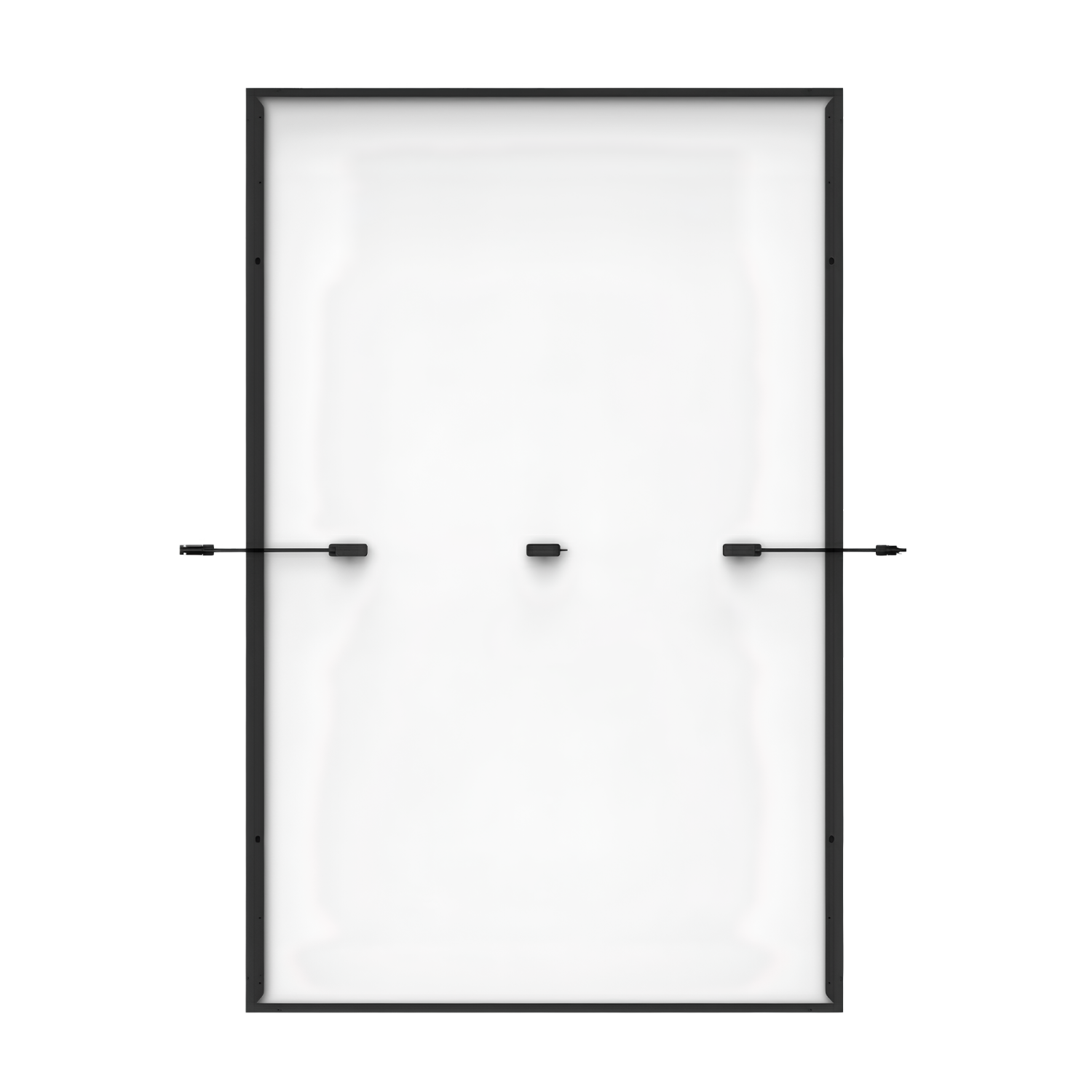

Trina Solar Vertex S+ 470W Glass-Glass Black Frame (NEG9R.28)

Maximum efficiency meets elegant design

The Trina Vertex S+ 470W (TSM-NEG9R.28) is the next-generation powerhouse for your home rooftop. By combining state-of-the-art n-type i-TOPCon cells with a robust dual-glass construction, this module sets new standards in durability and yield.

Your benefits with Solar-Guard:

• Future-proof n-type technology: high efficiency and significantly lower degradation compared to conventional p-type modules.
• Dual-glass protection (glass-glass): maximum resistance to environmental influences, ammonia, and salt mist; less susceptible to micro-cracks.
• Elegant aesthetics: the black frame ensures a modern, discreet look on any roof surface.
• Excellent warranty: 25-year product warranty and 30-year performance warranty.

Technical details at a glance:

• Power: 470 Watt peak
• Module efficiency: approx. 23.5% (470 Wp on 2.00 m² module area)
• Cell type: monocrystalline, n-type i-TOPCon
• Structure: glass-glass (dual-glass)
• Frame: 30 mm, black anodized aluminum alloy
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 24.5 kg
• Mechanical load capacity: 5400 Pa snow load, 4000 Pa wind load (test loads)

Why Trina Vertex S+?

Thanks to the n-type cell technology and the glass-glass structure, this module is particularly stress-resistant. Even after 30 years, Trina Solar still guarantees a performance output of 87.4% – a top value in the industry.

Downloads

• Data sheet Trina Vertex S+ TSM-NEG9R.28 (PDF)
• Installation and operating manual Trina Vertex series (PDF)
